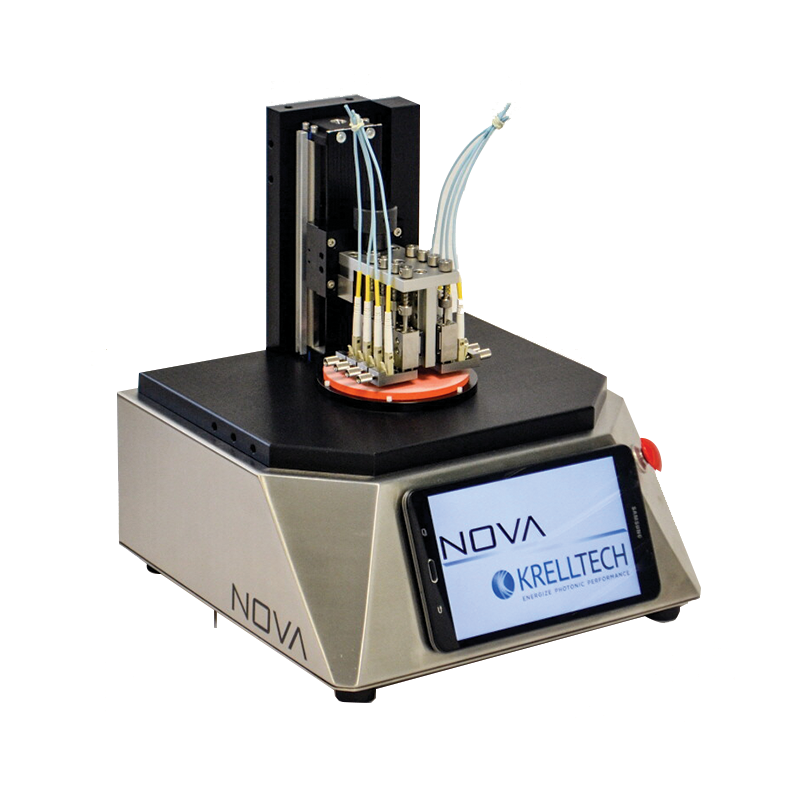

    NOVA Optical Polishing System

    Maximum flexibility for optical surface processing is now available with NOVA™. KrellTech has integrated the proven performance and features of its industry leading Scepter, Trig and FLex polishers into this configurable and cost-effective system.

    NOVA™ supports a variety of polishing applications from connectors to PICs/waveguides, and bare fibers to custom components. NOVA™ is scalable from R&D projects to high volume production and features wireless tablet operation with a familiar and intuitive Android interface.

    June 29, 2022, 9:41 p.m.
    Q
    PM fiber alignment: how well in angle can you set the stress axis? Another way, when I couple two fibers together what the cross coupling will be. Thanks
    A
    Using our SV10 Surface Inspection Videoscope combined with our measurement software, PM stress member alignment repeatability is about +/-1 degree.
    May 28, 2020, 1:50 p.m.
    Q
    What size polishing discs are used with NOVA?
    A
    This polisher uses 4" (4 inch) diameter polishing films, rubber pads and glass disks.
    April 2, 2020, 3:25 p.m.
    Q
    Does the NOVA offer a way to support the cables above the machine while polishing?
    A
    A set of cable management arms are included with the base NOVA. The NOVA design also allows for the interfacing of custom cable fixtures.
    April 2, 2020, 2:49 p.m.
    Q
    Is it possible to have different inserts for different connectors on the same 8-position NOVA?
    A
    Yes, an individual workholder fixture can be configured with various connector types and polishing positions.
    March 31, 2020, 8:56 p.m.
    Q
    Is the attached a NOVA polisher?
    A
    No, it is a SpecPro
    March 31, 2020, 8:08 p.m.
    Q
    I attached a picture of a product I am interested in. Can you tell me the name and part number of the attached?
    A
    There was no attachment provided.
    March 31, 2020, 8:08 p.m.
    Q
    I attached a picture of polishing film and pads. Will this size work with the NOVA?
    A
    They appear to be all 4" in diameter, so yes.
    March 31, 2020, 7:49 p.m.
    Q
    Is the attached compatible with a NOVA polisher?
    A
    No, the workholder in the picture you provided was for a Scepter Polisher.
    March 31, 2020, 7:35 p.m.
    Q
    How is the z axis lowered to the polishing surface?
    A
    It uses a linear stage that is controlled via tablet.
    March 27, 2020, 7:01 p.m.
    Q
    Is there a warranty on all parts?
    A
    Yes, up to 1 year.
    March 26, 2020, 7:22 p.m.
    Q
    Is there an emergency switch button?
    A
    Yes
    March 26, 2020, 7:13 p.m.
    Q
    What is the warranty period?
    A
    1 year on parts
    March 26, 2020, 7:04 p.m.
    Q
    Is this base capable of interchanging workholder/fixtures?
    A
    Yes
    March 26, 2020, 7 p.m.
    Q
    Are these available for angled MT Connectors?
    A
    Yes
    March 26, 2020, 6:22 p.m.
    Q
    Do you offer process development?
    A
    We do, however on a basis to basis application.
    March 23, 2020, 8:40 p.m.
    Q
    What film size does NOVA use?
    A
    4 inch diameter polishing film.
    March 23, 2020, 6:37 p.m.
    Q
    If I have an 8 position polishing jig, can I polish less than 8 connectors?
    A
    Yes, any number of connectors can be polished.
    Jan. 3, 2020, 4:23 p.m.
    Q
    What is the maximum number of SC connectors that can be polished with NOVA?
    A
    NOVA can polish 8 SC/UPC or SC/APC connectors.
    Jan. 3, 2020, 3:20 p.m.
    Q
    What size film does NOVA use?
    A
    NOVA uses 4 inch diameter polishing film, rubber pads and glass disks.
