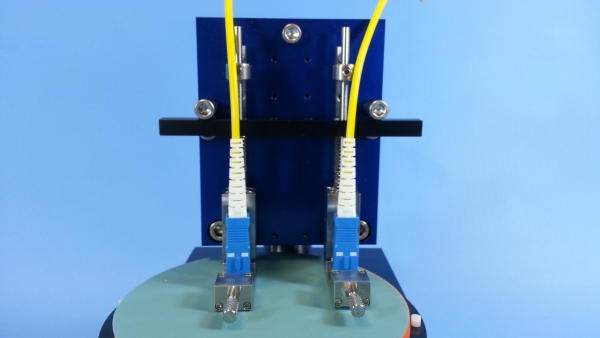

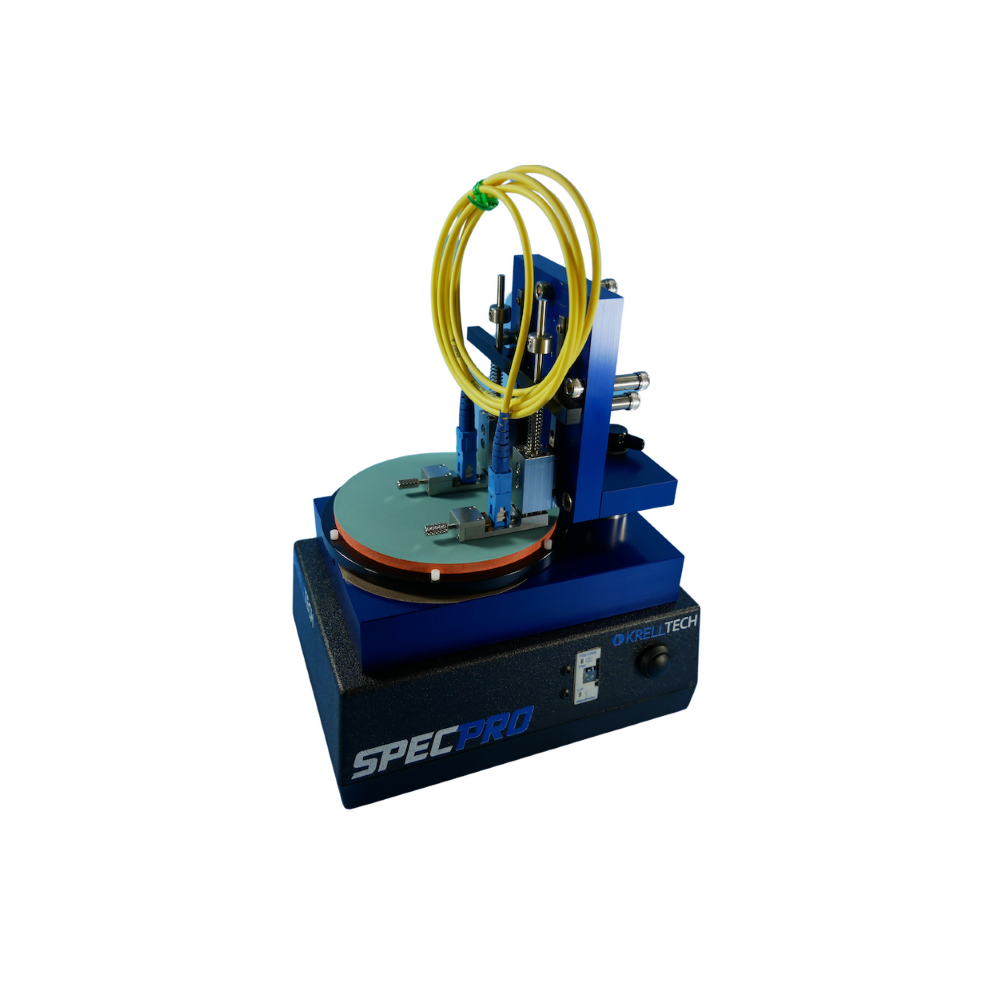

SpecPro™ Connector Polisher, KRELLTECH, fiber 이미지 확대 보기
  • SpecPro™ Connector Polisher, KRELLTECH, fiber
  • SpecPro™ Connector Polisher, KRELLTECH, fiber
  • SpecPro™ Connector Polisher, KRELLTECH, fiber
  • SpecPro™ Connector Polisher, KRELLTECH, fiber

SpecPro™ Connector Polisher, KRELLTECH, fiber

SpecPro™ is designed to yield singlemode performance for R&D and medical applications, low volume cable assembly production, and field environments.
판매가
0원
브랜드
KRELLTECH
구매혜택
-
할인 :
M
적립 마일리지 :
원산지
USA
SpecPro™ Connector Polisher, KRELLTECH, fiber
0원
총 상품금액
총 할인금액
Total
5,000원 더 구매하면 무료 배송!
무료 배송!(2,500원을 절약했어요.)
delivery_icon
  • 0원
  • 50,000원
    • 배송비 계산 기준
    ×
    배송비 계산 기준
    ※ 판매가 + 옵션가 + 추가상품가 + 텍스트옵션가 - 상품할인가 - 상품쿠폰할인가
    ※ 상품에 적용된 배송비 기준입니다. 여러상품 주문시 또는 주문서 작성시 적용(설정)에 따라 달라질 수 있습니다.
    바로구매

    SpecPro™ Connector Polisher

    SpecPro™ is designed to yield singlemode performance for R&D and medical applications, low volume cable assembly production, and field environments. Up to four components can be simultaneously polished, including industry standard connectors, multifiber ferrules, MIL-spec termini, optical bundles, endoscopes and bare fibers. SpecPro is also ideal for repairing and retro-polishing damaged connectors. SpecPro™ incorporates Krell’s unique independent suspension feature for more uniform and consistent polishing at each connector position. Krell’s SpecVision™ Video Inspection System can also interface with SpecPro™ for in-line viewing of fiber finishes. In addition to its compact and portable packaging, SpecPro™ features both AC and battery operation.

    Read the Data Sheet

    Related Videos:

    Tool-less MTP MPO MTX Polishing Fixture

    Bare Fiber Polishing using SpecPro

    SpecPro Connector Polisher: Operations Video

    SpecPro Connector Polisher: Bare Fiber Video

    Related Q&A:

    July 22, 2025, 11:14 p.m.
    Q
    Can you please tell me if this can be used to fix both ceramic fiber ferrules and the metal style fiber ferrules? Thank you, Rosemary Diaz
    A
    Yes, SpecPro supports ceramic and metal fiber-terminated ferrules, as well as glass and polymer types. This is also true for all Krell polishers.
    March 31, 2022, 9:07 p.m.
    Q
    How do you maintain the height of the platen during spinning? Basically my concern is if the platen is wobbling or randomly going up and down, it will damage the fiber. Thanks!
    A
    Our rotating platen (in which polishing film is placed on a glass disk/rubber pad) lies directly upon the polisher baseplate. Both consist of aluminum that is ground to a high level flatness tolerance. Additionally, a quality control run-out measurement inspection(i.e. up/down movement) is perform
    Nov. 3, 2021, 3:49 p.m.
    Q
    What’s the maximum cycle time?
    A
    The SpecPro's digital timer is adjustable from 6 to 60 second intervals. An option is available for continuous operation controlled by an "on/off" switch.
    Nov. 3, 2021, 3:49 p.m.
    Q
    Does it come with the Universal UPC workholders?
    A
    All workholders are individually purchased for the base SpecPro. We will send a quotation for your UPC polishing application.
    March 19, 2021, 7:40 p.m.
    Q
    We're wondering if you have an attachment for the SpecPro polisher to polish FC/APC fibers? Right now we use it on FC/PC fibers and were considering making a switch.
    A
    Yes. We offer an interchangeable workholder fixture for FC/APC connectors. We will send a quotation.
    Feb. 24, 2021, 7:28 p.m.
    Q
    I like this machine but it appears to be for SC/UPC style connectors. Is there a fixture for this 4 fiber polisher designed for doing the SC/APC connectors? With an inspection process while it is still mounted in the fixture?
    A
    SpecPro is capable of polishing up to 4 connectors simultaneously. This includes SC/APC. We will generate a quotation for this workholder fixture.
    Aug. 7, 2020, 5:34 p.m.
    Q
    hello, is there a part number or SKU # for the SpecPro bare fiber/connector polisher for ordering purposes
    A
    Yes. The part number for the SpecPro base polisher is "SP4L". Please note, this will require either a connector or bare fiber workholder fixture.
    April 27, 2020, 12:01 p.m.
    Q
    How is the polishing time controlled?
    A
    The SpecPro polisher has a built-in digital timer that can be adjusted from 1 to 60 second cycles.
    April 14, 2020, 6:39 p.m.
    Q
    Is the polishing time adjustable?
    A
    Yes, from 1 to 60 seconds using the digital timer.
    April 6, 2020, 8:37 p.m.
    Q
    Are there any inspection options with SpecPro?
    A
    Yes, the SpecVision videoscope engages with SpecPro workholders for connector surface inspection.
    April 2, 2020, 3:08 p.m.
    Q
    What type of battery powers the SpecPro?
    A
    Standard 9 volt batteries. It also operates AC power using an adapter (included).
    March 31, 2020, 8:29 p.m.
    Q
    Attached is a picture of an inspection device being used with SpecPro. What is the name of this inspection module?
    A
    That is our SpecVision (SV7) camera.
    March 31, 2020, 8:21 p.m.
    Q
    I attached some films.. Are these compatible with the SpecPro?
    A
    It looks like they are all 4" films and pads, so yes.
    March 30, 2020, 9:58 p.m.
    Q
    I have a Universal UPC Workholder. What else do I need for polishing bare fibers?
    A
    Basically you will required a Bare Fiber Adapter and Adapter Coupler for each polishing position.
    March 12, 2020, 6:35 p.m.
    Q
    What is the range of the digital timer?
    A
    1 to 60 seconds per cycle.
    Feb. 27, 2020, 4:41 p.m.
    Q
    Is the pressure adjustable with SpecPro?
    A
    Yes, there are 3 user selectable pressure settings.
    Jan. 3, 2020, 4:43 p.m.
    Q
    Can SpecPro polish the component illustrated in this attachment?
    A
    Our Universal UPC workholder will polish Elio termini.
