UltraSpeed V-Modules with PCIe Gen3 x4, USB 3.0 and DDR4
UltraSpeed V‑Modules deliver unmatched performance by combining DDR4 on-board memory with a high-performance PCIe x4 Gen3 interface for ultra-fast image upload and real-time streaming. Designed to achieve maximum PC transfer rates, UltraSpeed modules enable ultra-low latency streaming from virtually unlimited PC memory (e.g. from SSD). UltraSpeed V-Modules excel in dynamic data handling, enabling continuous image upload exceeding the data rate of the DLPCx10 chipsets and set a new standard for speed in dynamic image streaming.
Whether for industrial, medical or scientific applications, they provide the ultimate solution for ultra-fast image upload and real-time streaming.
UltraSpeed V‑Modules are powered by the trusted ALP Controller Suite, which offers a versatile Application Programming Interface (API) designed for flexible control and customization.
In addition, the UltraSpeed V‑Modules support the innovative ViALUX Direct Link Sensor (DLS) concept, which enables seamless integration into existing systems. With the DLS concept, ViALUX offers precisely synchronized DLP® projection and image acquisition within one FPGA logic.
The UltraSpeed V‑Modules also support different image sensors, which are also available at ViALUX, to allow versatile applications.
For a rapid entry into development work, we have implemented an Application Programming Interface (API) as a dynamic-link library (DLL).
The UltraSpeed V‑Modules also support different image sensors, which are also available at ViALUX, to allow versatile applications.
For a rapid entry into development work, we have implemented an Application Programming Interface (API) as a dynamic-link library (DLL).
UltraSpeed V-Modules - Technical Specifications

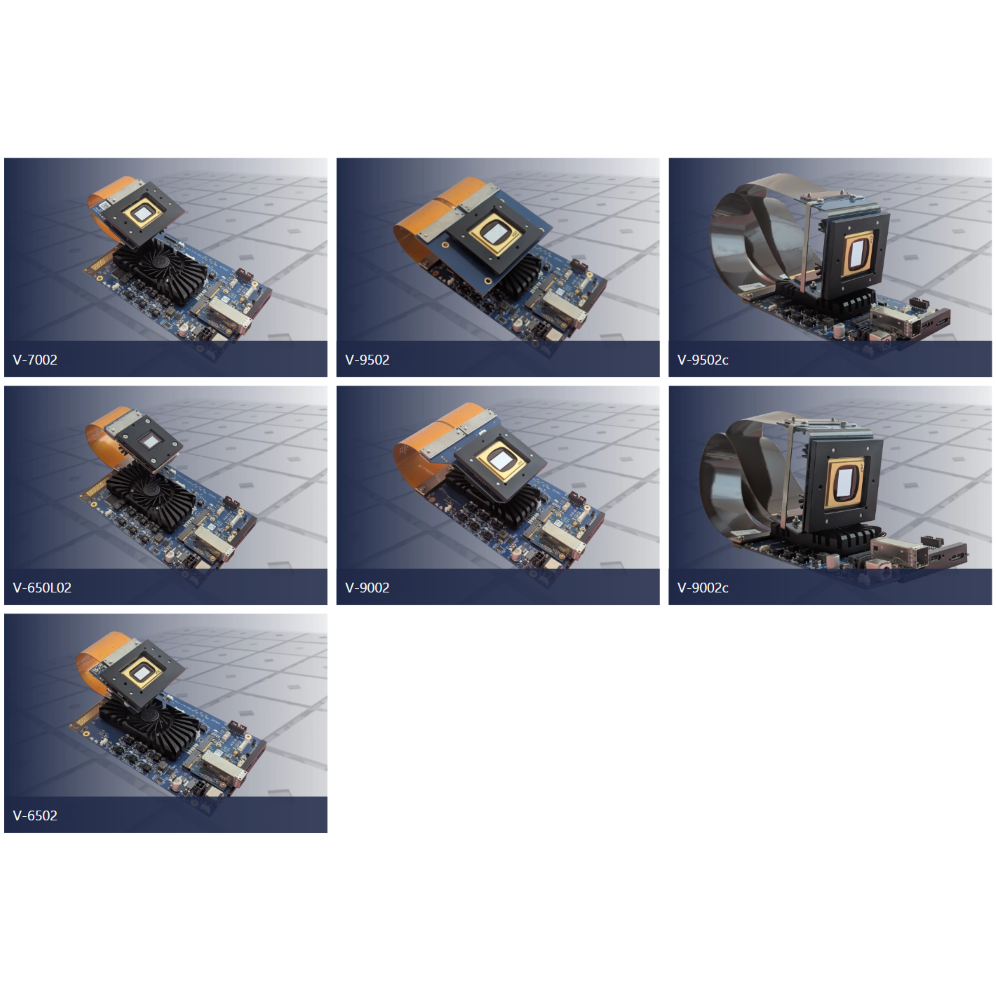

Initially, five UltraSpeed V‑Modules are available, which differ in DMD format and wavelength range. For more details see technical specifications.
| V-Module | V-7002 UV |
| DMD format | XGA |
| DMD chip | DLP7000UV |
Wavelength* | 363 - 420 nm |
| V-Module | V-650L02 |
| DMD format | WXGA |
| DMD chip | DLP650LNIR |
Wavelength* | 800 - 2 000 nm |

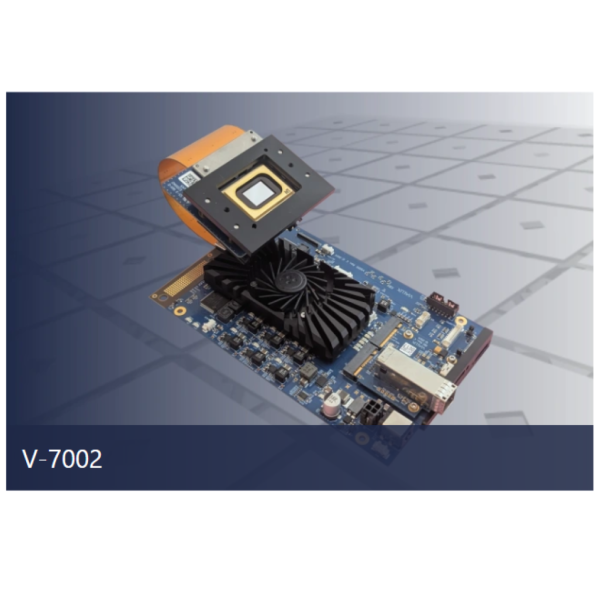

| V-Module | V-7002 |
| DMD format | XGA |
| DMD chip | DLP7000 |
Wavelength* | 400 - 700 nm |
| V-Module | V-9502 UV |
| DMD format | 1 080p |
| DMD chip | DLP9500UV |
Wavelength* | 363 - 420 nm |
| V-Module | V-9502 |
| DMD format | 1 080p |
| DMD chip | DLP9500 |
Wavelength* | 400 - 700 nm |
| V-Module | V-9002 UV |
| DMD format | WQXGA |
| DMD chip | DLP9000XUV |
Wavelength* | 355 - 420 nm |
| V-Module | V-9002 |
| DMD format | WQXGA |
| DMD chip | DLP9000X |
Wavelength* | 400 - 700 nm |
| V-Module | V-6502 |
| DMD format | 1 080p |
| DMD chip | DLP6500 |
Wavelength* | 400 - 700 nm |
UltraSpeed V-Modules - Information for Download
Datasheets of UltraSpeed V-Modules
UltraSpeed V-Modules - Applications
UltraSpeed V-Modules are designed and crafted for industrial and R&D applications.
