FBG laser mirrors
FBG laser components
For fiber laser cavity and high-power applications

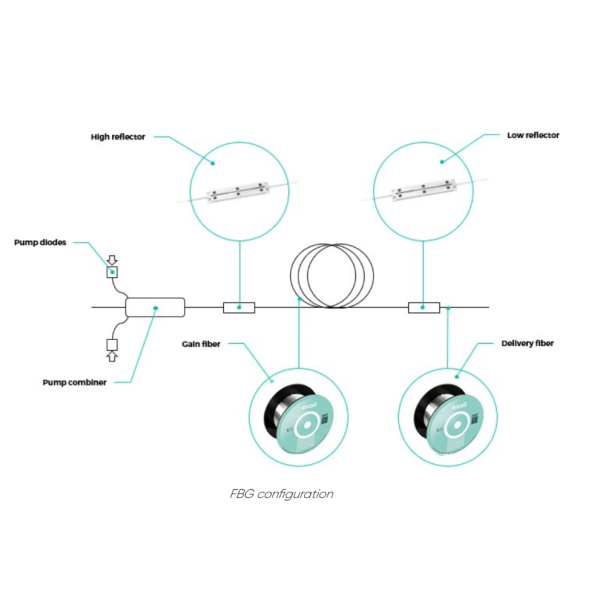

Fiber Bragg Grating (FBG) mirrors is a critical component used to design laser cavity and are ideal for high-power fiber lasers. Exail’s mirrors have been customized to address the specific requirements of high efficiency and laser applications.
Exail offers these wavelength selective mirrors on a complete range of specialty fibers for high power handling and standard applications. Optimized manufacturing process and testing ensure their long-term reliability in fiber lasers.

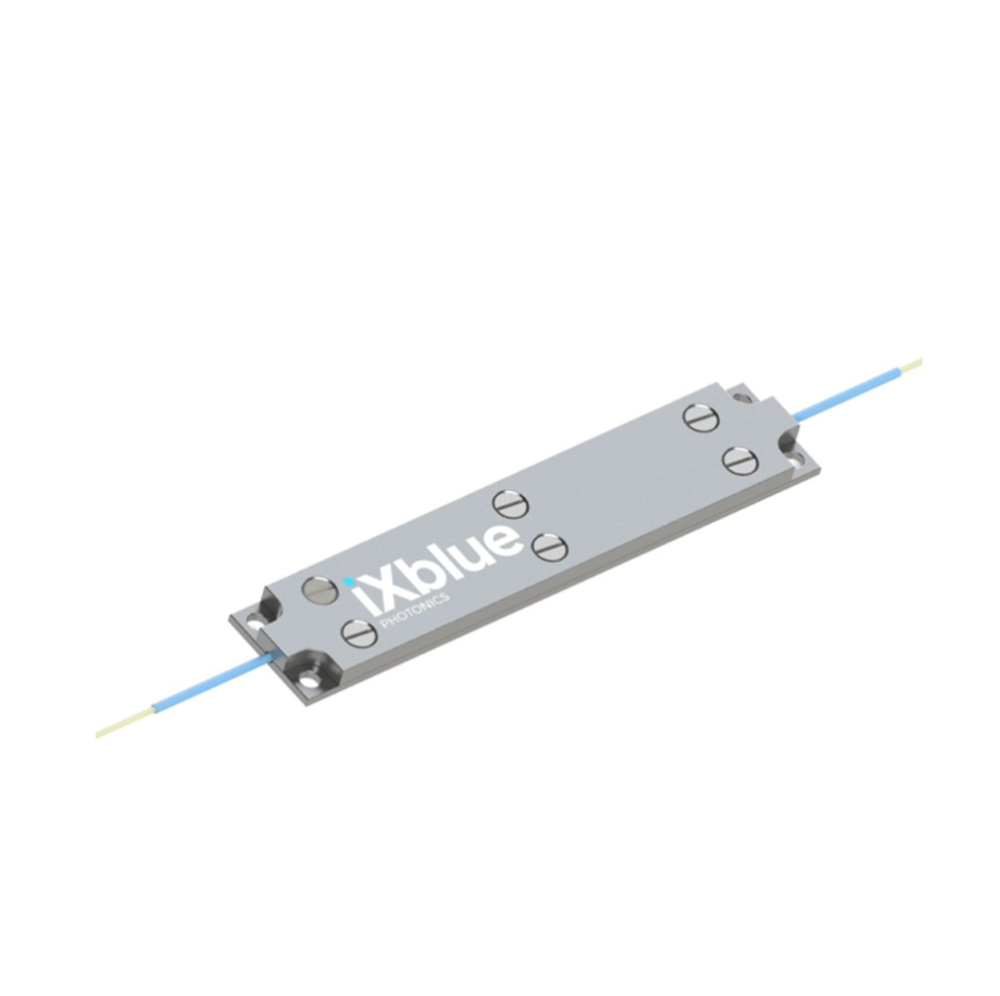

Exail offers a dissipative package for thermal management of the FBG to ensure stability at high optical power.
Features
Benefits & Features
Low thermal effect- Single mode or double clad fiber (in house fiber)
- Custom specifications available
- Specific recoating for pump guidance
- Full passive assembly available
- Packaging options : bare FBG and heat dissipative package
- PM available
- Custom design on request
Advantages of dissipative package
- Thermal and mechanical shock protection for FBG mirrors and splices
- Highly reduced wavelength drift
Applications
- High-power laser cavity
- 2 µm CW & pulsed lasers
- Medical applications
- Industrial applications (cutting & welding fiber laser)
Products
Design
Specification
Datasheet
IXC-MIR
FBG laser mirrors
Design upon request
Design upon request
IXC-MIR-UV
375, 500 nm
IXC-MIR-1550-HP
C-Band
High Power
Design upon request
IXC-MIR-1000-HP
1070, 1080 and 1095 nm
kW operation
IXC-MIR-1000-HP on Exail LMA fiber
1069 & 1080 nm
kW operation
kW operation
IXC-MIR-2000-HP
1910, 1943, 1951, 2034, 2051 & 2123 nm
High Power operation
IXC-MIR-2000-HP on Exail LMA fiber
1908, 1927, 1940, 1949, 1989, 2031, 2033, 2034, 2049 & 2120 nm
High Power operation
