Ultra
narrow
bandwidth
filters
In this IXC-FBG-PS design, a Phase Shift (PS) is introduced within the middle of the stop band. This PS will lead to a sharp resonance peak visible in the transmission spectrum response and features less than 1 dB of insertion loss.
Our narrow bandwidth transmission filter IXC-FBG-PS can be used as a narrow band transmission filter in telecom as well as in sensing applications. This product can also be used as a cavities of distributed feedback (DFB) fiber laser.
Features
Benefits
Very narrowband transmission filter lower than 1 GHz bandwidth- Low insertion loss at resonant peak
- Tailored transmission by changing the location and amount of phase shift
- High temperature stability within a 1 pm/°C
- Tunability +/- 100 pm
Applications
- Microwave photonics
- Quantum communication
- Space communication
- Lidar
- Lines filtering for lasers and sensors
- RF filtering
- Linewidth reduction
- Frequency discriminator
Products
Design
Specification
Datasheet
Component
IXC-FBG-PS-1550-1-ATH-PM-FA
Standard version 1550 nm 1 GHz FWHM
IXC-FBG-PS-CW-1-ATH-PM-CC
1525 – 1610 nm
1 +/- 0.5 GHz FWHM
1 +/- 0.5 GHz FWHM
IXC-FBG-PS-CW-2-ATH-FT-CC
1525 – 1610 nm
2 +/- 0.5 GHz FWHM
IXC-FBG-PS-CW-3-ATH-FT-CC
1525 – 1610 nm
3 +/- 0.5 GHz FWHM
3 +/- 0.5 GHz FWHM
IXC-FBG-PS-CW-4-ATH-FT-CC
1525 – 1610 nm
4 +/- 0.5 GHz FWHM
IXC-FBG-PS-795-1-ATH-PM-FA
795nm
< 1 GHz FWHM
< 1 GHz FWHM
IXC-FBG-PS-810-3-ATH-PM-FA
810 nm
< 3 GHz FWHM
< 3 GHz FWHM
IXC-FBG-PS-1054-2-ATH-PM-FA
1054 nm < 2 GHz FWHM
IXC-FBG-PS-1064-2-ATH-PM-FA
1064 nm < 2 GHz FWHM
IXC-FBG-PS-1112-2-ATH-PM-FA
1112 nm < 2 GHz FWHM
Module

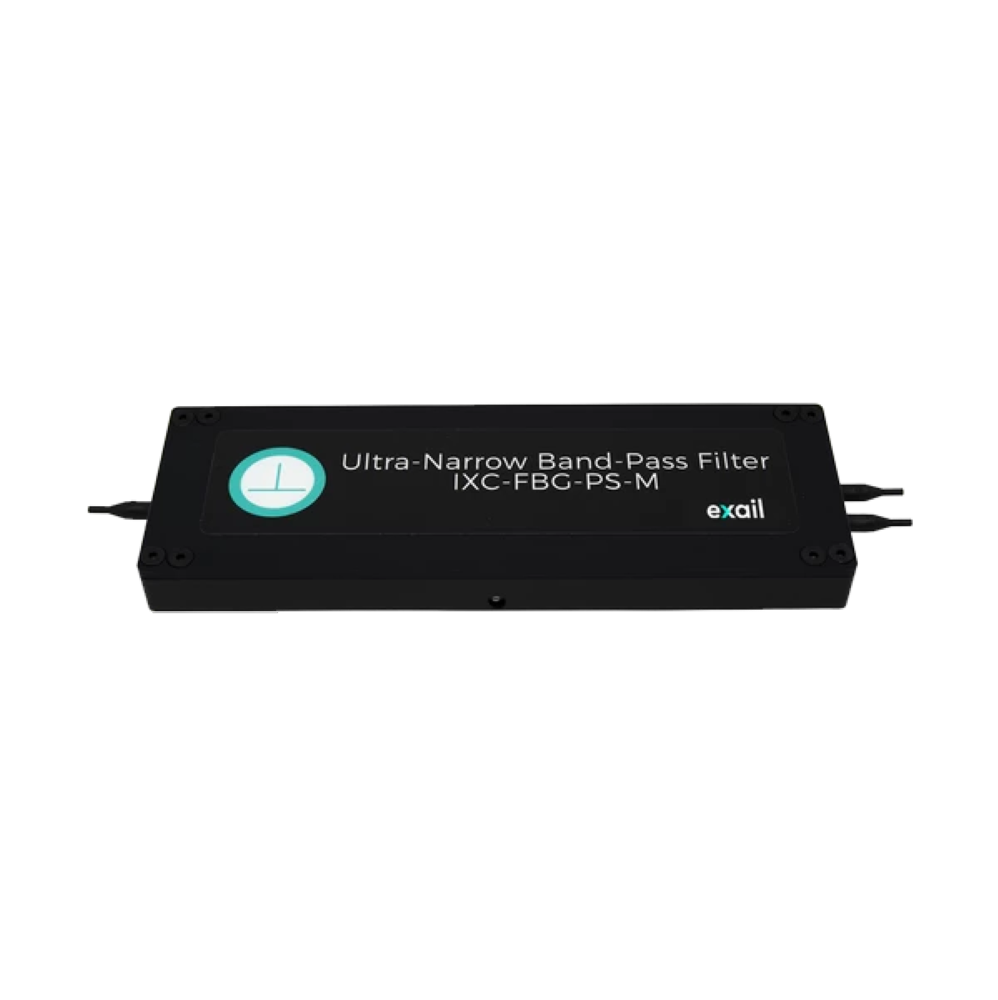

IXC-FBG-PS-M
1 to 4 GHz FWHM
> 25 dB Optical Rejection Ratio @ 10 Ghz
< 4 dB IL
