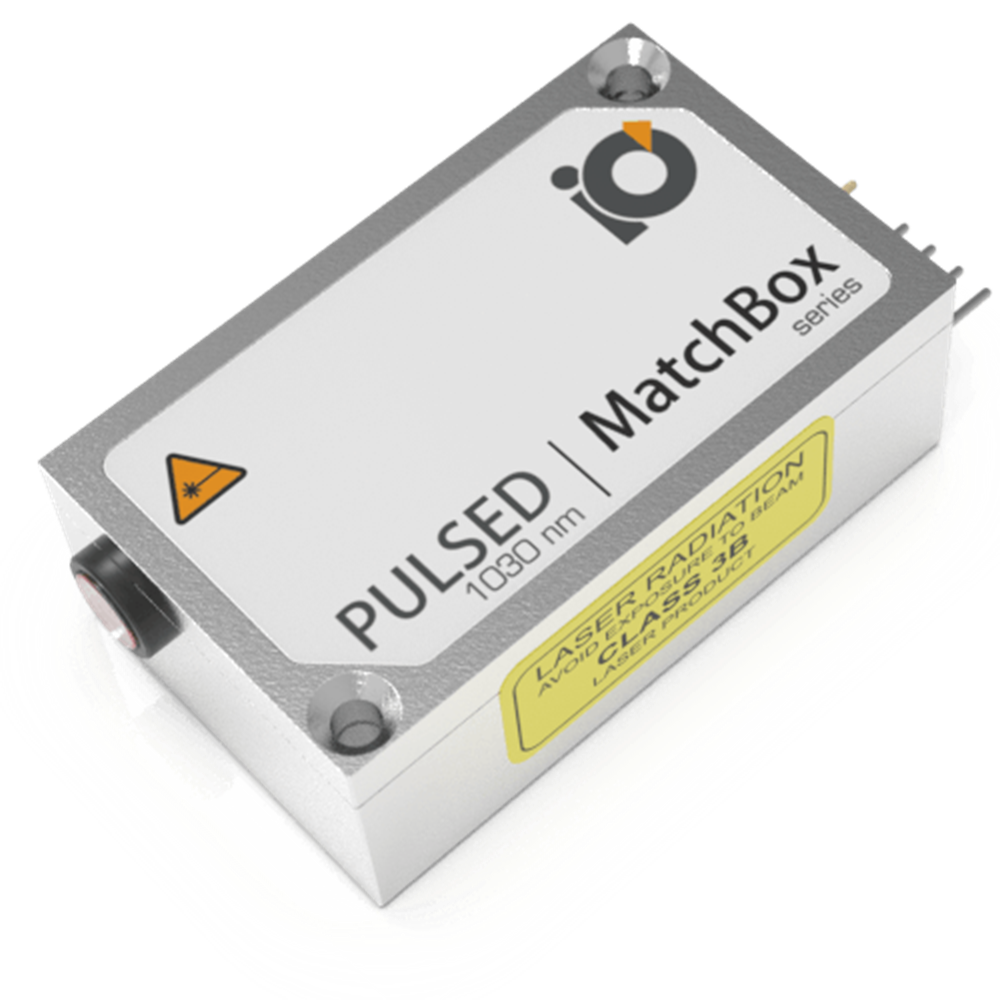

1030 nm Laser

1029 nm nanosecond laser module is a turnkey laser featuring high pulse energy and a pulse duration of less than 2 nanoseconds. High pulse energy and compact package make this laser suitable for Light-Induced Breakdown Spectroscopy (LIBS) application

판매가: 0원

브랜드: Intergrated Optics

구매혜택: -
할인 :
M
적립 마일리지 :

모델명: 1030L-11C-NI-NT-NF

: Passive Q-Switch / Free-space

: Central wavelength, nm: 1030

: Spectral line width FWHM, nm: 0.7

: Output power, mW: As per request

: Power stability, % (RMS, 8 hrs): 0.5

: Pulse-to-pulse stability (RMS of peaks): 10

: Warranty, months (op. hrs): 14 (10000)

1030 nm Laser

0원

총 상품금액

총 할인금액

Total

5,000원 더 구매하면 무료 배송!

무료 배송!(2,500원을 절약했어요.)

0원

50,000원

배송비 계산 기준

바로구매

상세정보
교환및반품
상품후기 (0)
상품문의 (0)

1029 nm Nanosecond Laser | Integrated Optics

Description

Current configurations in production:

Variant	Pulse duration (ns)	Pulse energy (μJ)	Peak power (kW)	Repetition rate (kHz)
1	1.3	50 to 60	38 to 46	10
2	1.5	100	67	2 to 3

* Other parameters can be developed based on customer specifications. Please refer to the table below for possible parameter ranges.

Specifications

Last edited on: 23 June 2023

Parameter	Minimum Value	Typical Value	Maximum Value
Central wavelength, nm	1028	1030	1032
Longitudinal modes	-	Multiple	-
Spectral line width FWHM, nm	-	0.7	1
Output power, mW	-	As per request	500
Pulse duration, ns (FWHM, polarized)	1.4	1.5	1.8
Pulse duration, ns (FWHM, non-polarized)	1.1	1.2	1.5
Repetition rate, kHz	1.5	As per request	2.5
Pulse energy, µJ	-	As per request	100
Power stability, % (RMS, 8 hrs)	-	0.5	1
Pulse-to-pulse stability (RMS)	-	10	30
Transversal modes	-	TEM00	-
Beam width (1/e²), mm	-	1.1	-
Beam height (1/e²), mm	-	1.2	-
Horizontal beam divergence, mrad	-	1.2	-
Vertical beam divergence, mrad	-	1.1	-
M² effective	-	1.3	1.5
Jitter (μs)	-	20	50
Jitter, %	-	3	8
Control interface type	-	UART	-
Operation mode	-	APC (CW)	-
Input voltage, VDC	-	5	-
External PSU	-	+5 V DC, 5A	-
Dimensions (L×W×H), mm	-	50 × 30 × 18	-
Beam height from base, mm	-	10.4	-
Heat-sinking requirement, °C/W	-	0.5	-
Optimum heatsink temp, °C	-	20	-
Warm up time, mins	-	10	-
Temperature stabilization	-	Internal TEC	-
Overheat protection	-	Yes	-
Net weight, kg	-	0.29	-
Max. power consumption, W	-	25	-
Warranty	-	14 (10000 hrs)	-
RoHS	-	Yes	-
Laser safety class	-	3B	-

1 Measured with a scanning Fabry-Perot interferometer having 7.5 Mhz resolution, with scanning frequency of about 10 Hz. Interferometer testing is not provided for each laser being manufactured, the standard test is OSA measurement with 20-30 pm resolution instead.
2 The long term power test is carried out at constant laser body temperature (+/-0.1 ‎°C) using an optical power meter with an input bandwidth of 10 Hz. The actual measurement rate has a period of about 20 seconds to 1 minute.
3 Beam width and height are measured at 0.45 m from output aperture.
4 For lasers without integrated optical isolators.
5 Break-out-boxes AM-C8 and AM-C3 can be used for conversion of UART communication to either USB or RS232.
6 Excluding control interface pins and an output window/fiber assembly.
7 Whichever occurs first. The laser has an integrated operational hours counter.

Typical Spectrum

Typical spectrum of 1030 nm passive Q-Switch DPSS laser. Measured with 20 pm resolution.

Spectrum of 1030 nm Laser

Drawing

Key dimensions of a free-space MatchBox.

Download Link

Typical Near Field

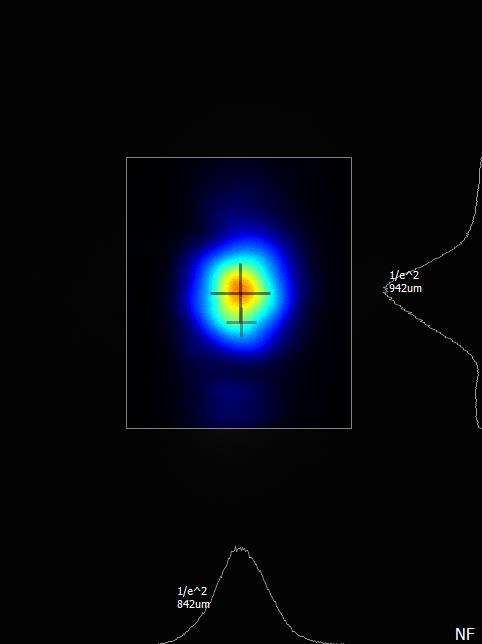

Typical near field (0.45 m from output aperture) beam profile of 1030 nm Laser.

Typical Far Field

Typical far field (1 m from output aperture) beam profile of 1030 nm Laser.

Downloads and links

Accessories

Applications

Photoacoustic imaging is a process where powerful laser pulses interact with material by exciting acoustic waves. Similarly, as in ultrasound imaging, the propagating acoustic waves are analyzed by piezo-based detectors (pick-ups), and the complete 3D image is formed by raster scanning or other techniques, such as laser-based holography or interferometry.
