RTC Board

Data analysis & optimization

Comprehensive tools for data recording and simulation make it easier for you to analyze and optimize laser processes. Real-time monitoring of system parameters during execution helps to identify and react to critical conditions.

Control Center and Software

CAD import and design

SCANmotionStudio allows you to import and edit complex 2D and 3D geometries. With the 3D slicing function, you can divide STL files into layers and prepare them optimally for 3D printing or deep engraving.

Flexibility in laser process definition

Define individual laser parameters and hatching patterns to test and optimize the ideal processing strategy for different materials and applications.

Automation and interfaces

SCANmotionStudio offers extensive automation functions, including dynamic data import and flexible process definition through variables and logical functions.
Support for fieldbus, serial interfaces, digital I/Os and a remote interface (API) helps you integrate the software seamlessly into industrial environments.

Scan System Control

SCANahead technology

The SCANahead control, available in systems of the excelliSCAN- and intelliSCAN IV family, ensures greater dynamics and precise synchronization of the laser control. Functions such as Spot Distance Control and extended Sky Writing options enable even more precise editing.

SCANmotionControl & XL SCAN

SCANmotionControl calculates the optimal trajectories based on the physical limits of the scan system. By simulating and analysing the trajectory, you can optimize process parameters before the first laser marking.
XL SCAN increases the processing area almost infinitely by perfectly synchronizing the control of the galvanometer scanner and mechanical axes. This means that stitching errors no longer occur.

Calibration tools

The integrated tools guide you through the initial calibration of the laser system and support fully automated calibration routines in combination with machine vision to continuously achieve the highest accuracy.

Camera

Machine Vision

SCANmotionStudio supports the integration of industrial cameras for the automatic recognition of features and component positions. This ensures simpler process control and greater accuracy in production.

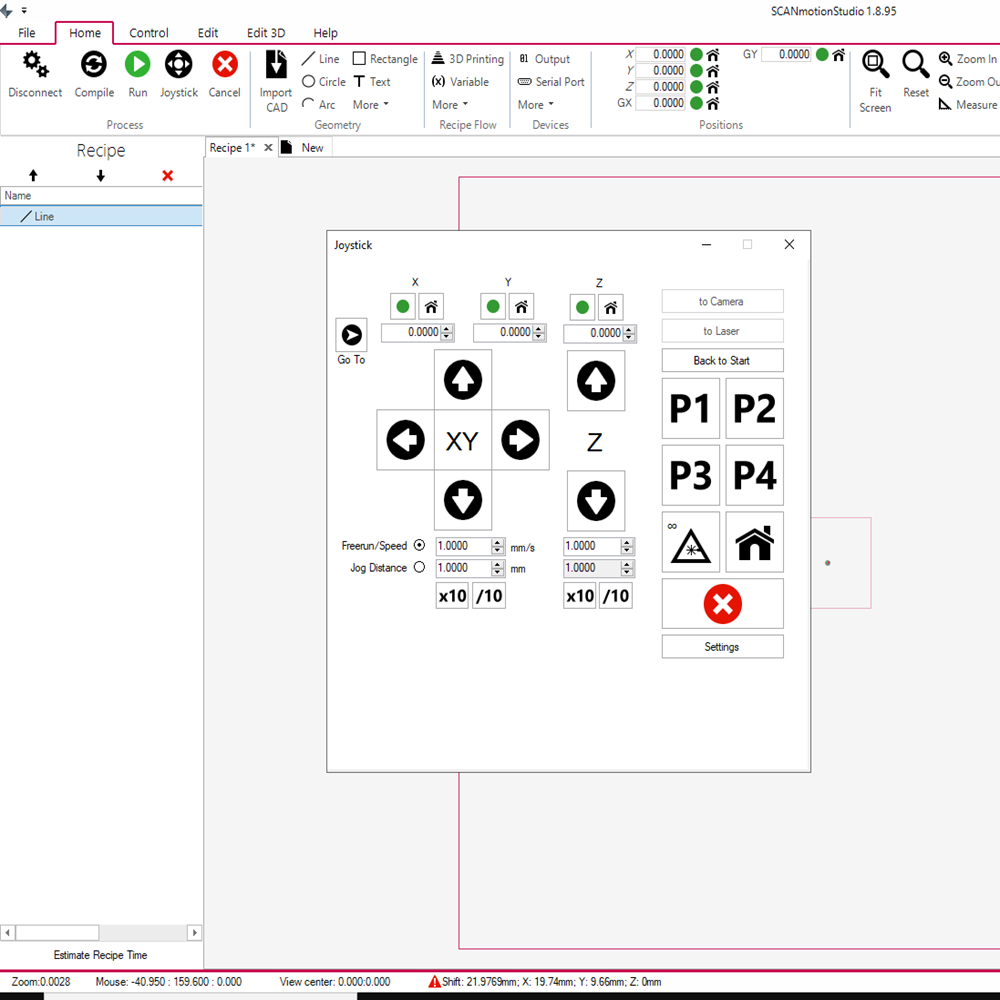

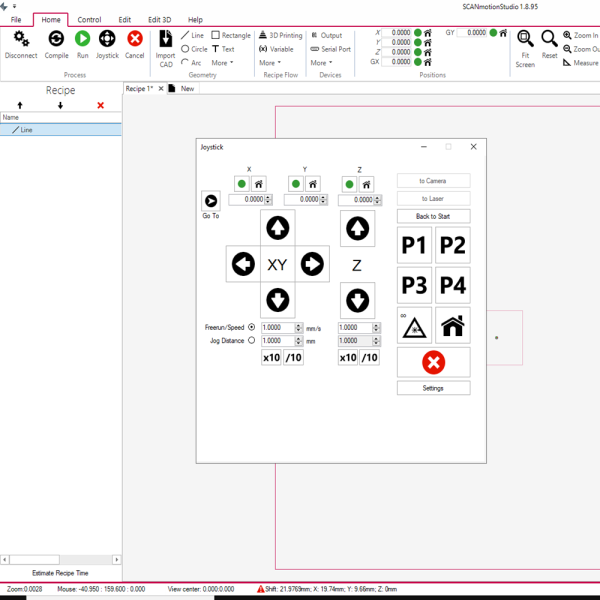

Stage and Axis Controller

Synchronized control of Scan Systems und axes

SCANmotionStudio allows synchronized control of galvanometer scanners and mechanical axes. Functions such as MOF (Marking on the Fly) and Stitch + Scan enable the seamless processing of larger surfaces. For the processing of highly complex 3D surfaces, the control of 5-axis systems can be synchronized with the control of a galvanometer scanner in SCANmotionStudio.
