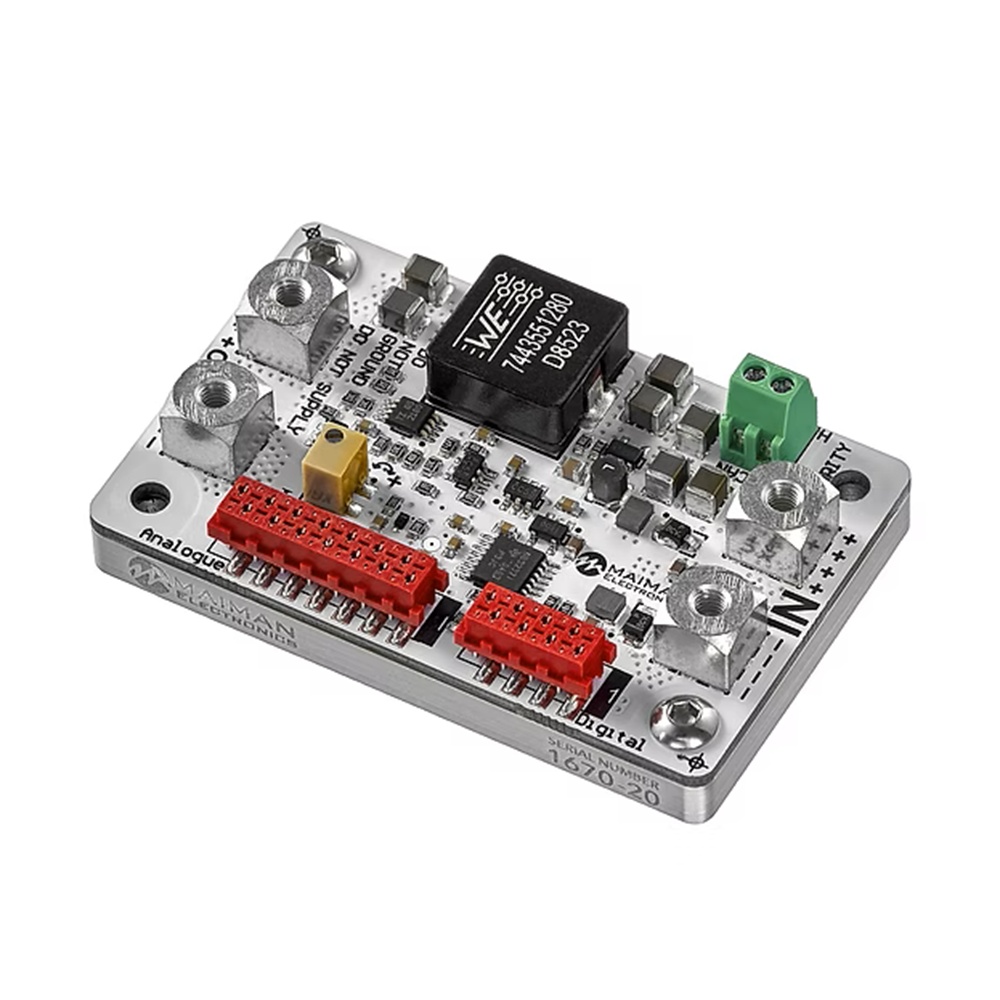

Laser Diode Controller OEM CW/QCW 15A 10V SF6015 v2.3

Overview

SF6XXX is the series of high power, compact OEM constant current laser diode drivers. Unique laser driver circuit solutions allows to achieve high efficiency (up to 97%) and high power density. Aluminum base plate provides effective remove heat from laser diode driver module with the water or air cooling. Laser current driver have generous amount of protection features for laser diode safety operating. The main fields of application for high power laser drivers SF6XXX is laser marking, welding, soldering, and cutting applications, medical equipment, laser measurement equipment, spectrometers, lidar, range finders and laboratory test set-ups. These devices are an excellent choice for laser diode from II-VI Laser Enterprise, BWT Beijing Laser Diodes, IPG Photonics, Dilas Diodenlaser, Lumentum and etc

Additional converter * (선택사항)

1. NO

2. UART/USB

3. UART/Bluetooth

4. UART/USB +UART/Bluetooth

CURRENT & VOLTAGE

Output Current Range (I): 0-15 Аmps

Output Voltage Range (0.75*Vin max) (V): 1-10 Volts

Setpoint Resolution: 0.01 Amp

Rise Time: (Iout = 7,5A) min - 150μs; max - 500μs

Rise Time: (Iout = 15A) min - 140μs; max - 500μs

Fall Time: min - 250μs; max - 1200μs

Current Stability: <0.2 %

Current Setpoint Absolute Accuracy: <1 %

LASER DIODE PROTECTION

Soft-Start Ramp to Current Setpoint

User Adjustable Current Limit

Over-Current Protection Fast Shutdown

Over-Temperature Thermal Warning and Shutdown

Reverse Current Protection

Crowbar Circuit Protection

Disable Input

Interlock

DIMENSIONS AND WEIGHT

Dimensions: 57.9 mm x 36.8 mm x 15 mm

Weight: 55 g

USER INTERFACE

Analog

RS-232 / UART Digital Interface (USB as a paid option 20 €)

Bluetooth as a paid option 60 € (necessary for Android app)

Enable / Disable Input Signal Input

DRIVER INPUT

Input Voltage Range (Vin): 10V to 14V

PACKAGE SET

Driver – 1 pcs

50 cm ribbon cable with one 8-pin connector – 1 pcs

50 cm ribbon cable with one 14-pin connector – 1 pcs

Wires fixing set – 1 pcs

Datasheet & User Manual – 1 pcs

WARRANTY PERIOD

1-year manufacturer's warranty

Downloads

Manual SF6015

PC Software, LabView, Python drivers

Android App to work via Bluetooth adapter

STEP 3D Model

RoHS3 compliant for SF6015
